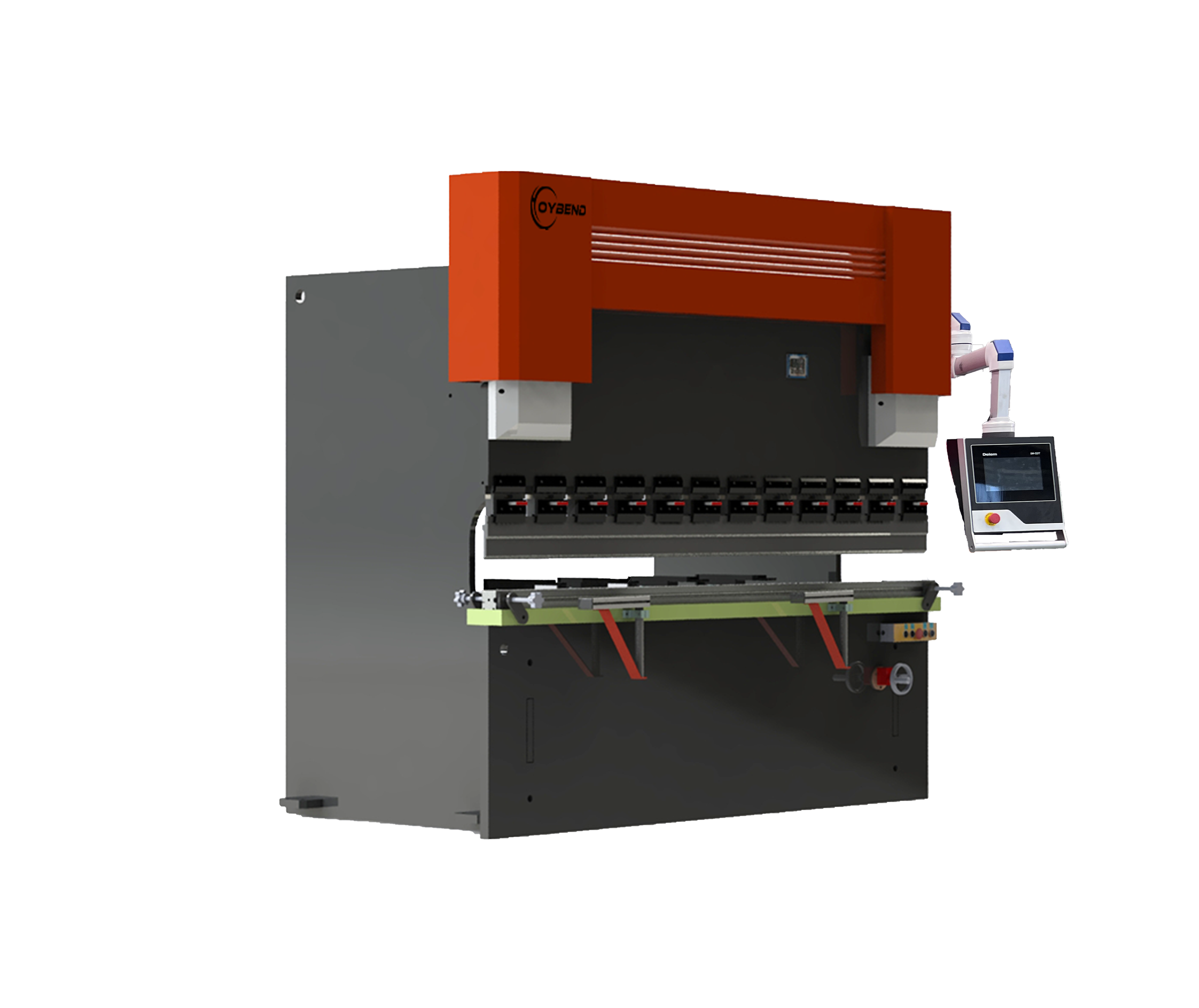

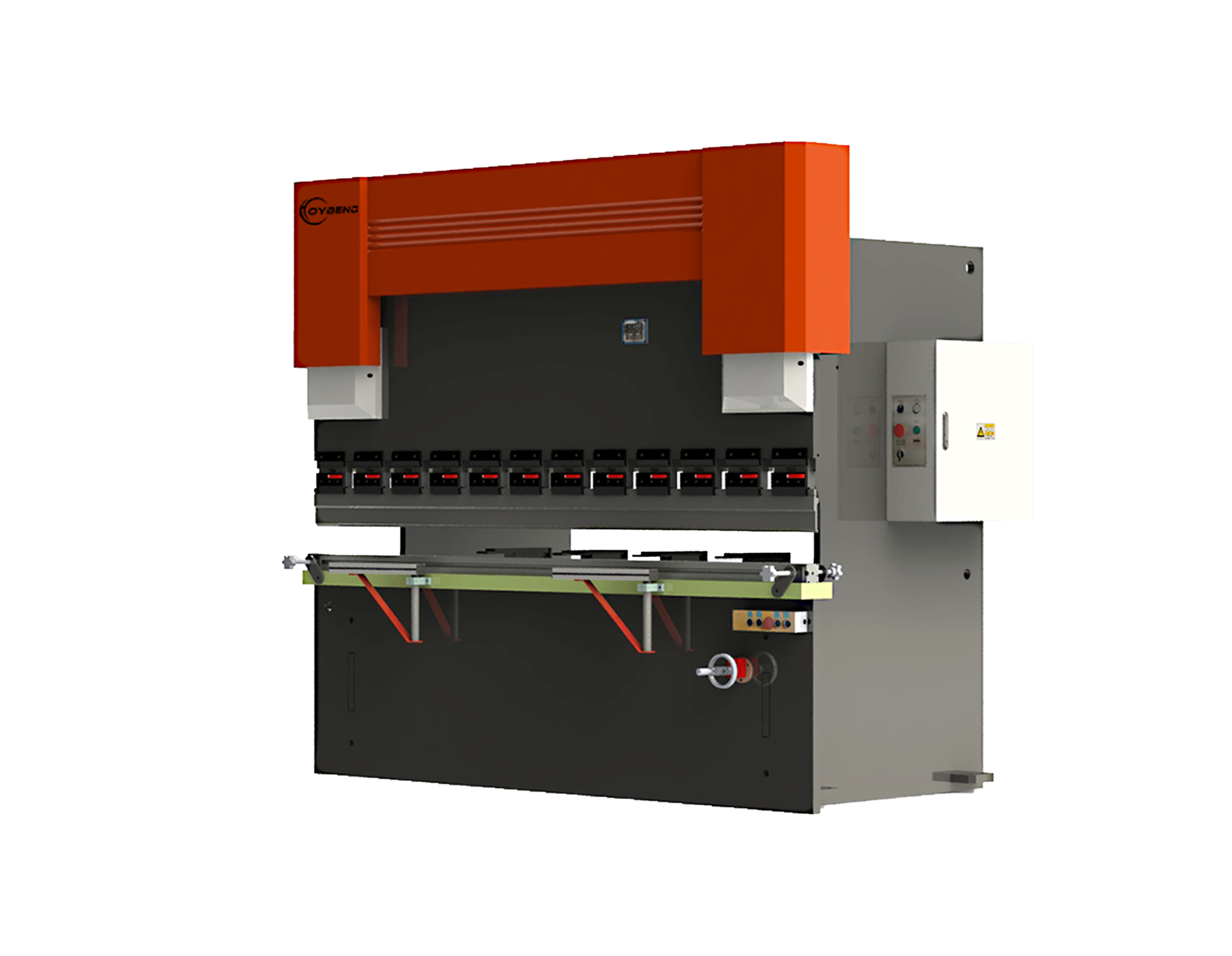

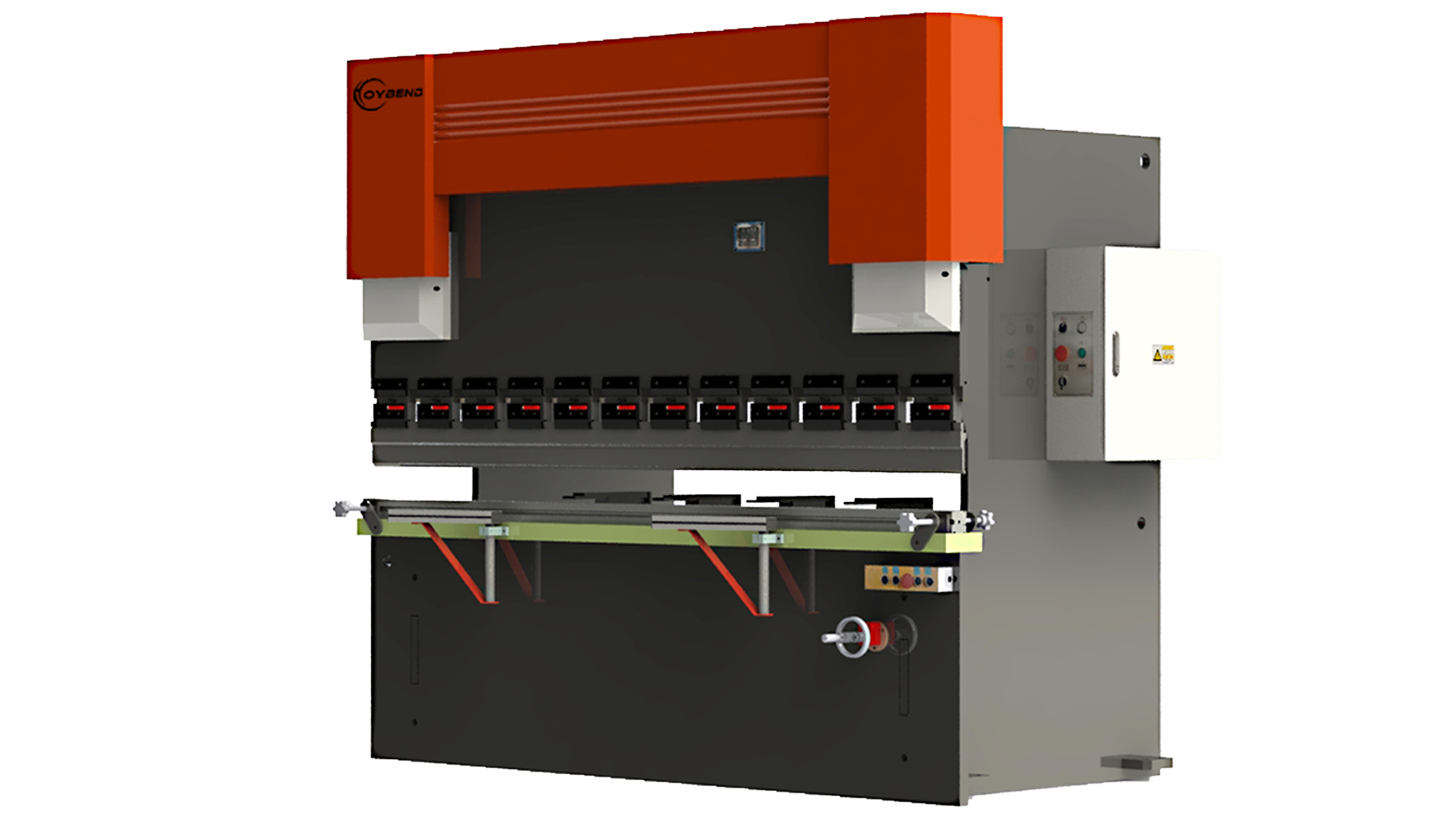

Hydraulic Torsion Servo CNC Press Brake_Shandong Hoysook Laser Technology Co., Ltd

Product Parameters

Unmatched Structural Stability

♦ Advanced frame design minimizes deflection under load, ensuring consistent ±0.03mm bending accuracy even at maximum capacity.

♦ Manual crowning system further compensates for bed deflection, perfect for long-span bending.

High-Speed Performance

♦ Y-axis torsion bar synchronization delivers rapid approach/bending/return speeds – up to 20% faster than conventional systems.

Future-Proof Flexibility

♦ Modular design supports post-purchase upgrades (e.g., CNC retrofits, laser protection).

Built for Reliability

♦ Premium components (HLA cylinders, THK guides) ensure 50,000+ hours MTBF (Mean Time Between Failures).

Product Details

CNC Press Brake · Premium Technical Specifications

Electro‑hydraulic servo · Dynamic closed‑loop

±0.1° real‑time compensation

Servo valve + displacement dual‑cylinder drive, real‑time feedback

Dynamic springback comp. stable for any material/thickness

Complex 3D / multi‑arc non‑marking, asymmetrical

Servo energy‑saving high‑grade hydraulic oil

Series 63T – 320T · main parameters

Type	Nominal Force KN	Bending Length mm	Poles Distance mm	Throat Depth mm	Slider Travel mm	Height of Table mm	Die Loading H mm	Power kw	Comp	axes	Travel mm	Speed mm/s	Dimension (L×W×H)
63T/2500	630	2500	2020	280	100	780	400	5.5	3	3+1	600	200	280022001200
80T/3200	800	3200	2520	320	120	850	380	7.5	3	3+1	600	200	350023501450
100T/3200	1000	3200	2520	320	140	850	460	7.5	3	3+1	600	200	350027501450
100T/4000	1000	4000	3300	400	140	890	460	7.5	3	3+1	600	200	430025601450
125T/3200	1250	3200	2600	400	140	890	460	11	3	3+1	600	200	350025601450
125T/4000	1250	4000	3300	400	140	890	460	11	3	3+1	600	200	430025601450
160T/3200	1600	3200	2600	320	180	840	480	11	3	3+1	600	200	350025001450
160T/4000	1600	4000	3300	400	200	840	480	11	3	3+1	600	200	430026001450
200T/3200	2000	3200	2600	360	200	900	480	15	3	3+1	600	200	330026001500
200T/4000	2000	4000	3300	400	200	900	480	18.5	3	3+1	600	200	430026001500
250T/3200	2500	3200	2600	360	200	840	480	15	3	3+1	800	200	330026501450
250T/4000	2500	4000	3300	400	200	900	480	22	3	3+1	800	200	430026501600
300T/4000	3000	4000	3300	400	250	980	520	22	3	3+1	800	200	430027002000
320T/3200	3200	3200	2600	400	250	840	420	18.5	3	3+1	800	200	330027002000

Large tonnage 400T – 600T

Type	KN	Bend L	Poles	Throat	Stroke	Table H	Die H	kW	Comp	axes	Travel	Speed	Dimension
400T/4000	4000	4000	3500	400	250	800	420	22.5	3	3+1	500	200	430027002000
500T/5000	5000	5000	3900	500	250	800	600	37	3	3+1	500	200	540028002200
500T/6000	5000	6000	4900	500	250	800	600	37	5	3+1	500	200	650028002200
500T/7000	5000	7000	5900	500	250	800	600	37	5	3+1	500	200	750028002200
600T/5000	6000	5000	3900	500	300	800	600	45	5	3+1	500	200	550030002200
600T/6000	6000	6000	4900	500	300	800	600	45	5	3+1	500	200	650030002500
600T/7000	6000	7000	5900	500	300	800	600	45	5	3+1	500	200	750030002500

Servo energy‑saving system · precise hydraulic servo requires high‑grade oil & professional maintenance; slightly higher energy consumption but reducible via servo energy‑saving package.

Torsion bar synchronous · Mechanical drive

±0.5° · low maintenance

Torsion shaft sync simple, reliable, balanced by shaft torsion

Digital angle/stroke adj. reduces manual error

Small‑medium batch multi‑spec flexible production

Low failure rate only routine lubrication

Hydraulic Torsion Servo CNC Press Brake · 30T – 250T

Model	Nominal Force KN	Worktable L mm	Poles Dist mm	Throat mm	Back Gauge mm	Ram Stroke mm	Max Open mm	Power kw	Dimension (L×W×H)
30T/1600	300	1600	1200	180	20-400	80	250	3	180010501700
40T/1600	400	1600	1200	220	20-500	100	320	5.5	180013402000
40T/2200	400	2200	1800	220	20-500	100	320	5.5	240013402000
40T/2500	400	2500	2000	220	20-500	100	320	5.5	270013402000
63T/2500	630	2500	2000	260	20-600	100	370	5.5	270013802250
63T/3200	630	3200	2500	260	20-600	120	370	5.5	340013802250
80T/2500	800	2500	2000	320	20-600	120	380	7.5	270014502250
80T/3200	800	3200	2500	320	20-600	120	380	7.5	340014502250
80T/4000	800	4000	3100	320	20-600	120	380	7.5	420014502250
100T/2500	1000	2500	2000	320	20-600	140	380	7.5	270015002420
100T/3200	1000	3200	2500	320	20-600	140	380	7.5	340015002420
100T/4000	1000	4000	3060	400	20-600	140	380	7.5	420015002420
100T/5000	1000	5000	4000	400	20-600	140	380	7.5	520016002500
125T/2500	1250	2500	2000	320	20-600	140	380	7.5	270015502450
125T/3200	1250	3200	2500	320	20-600	140	380	7.5	340015502450
125T/4000	1250	4000	3055	400	20-600	140	380	7.5	420015502450
125T/5000	1250	5000	4000	400	20-600	140	380	11	520016502550
125T/6000	1250	6000	5000	400	20-600	140	380	11	620016502550
160T/3200	1600	3200	2500	320	20-600	140	470	11	340017002520
160T/4000	1600	4000	3100	320	20-600	140	470	11	420017002520
160T/5000	1600	5000	4000	400	20-600	180	470	11	520018002800
160T/6000	1600	6000	5000	400	20-600	180	470	11	620018002900
200T/3200	2000	3200	2500	400	20-600	200	480	15	340018002550
200T/4000	2000	4000	3100	400	20-600	200	480	15	420018002550
200T/5000	2000	5000	4000	400	20-600	200	480	15	520019002900
200T/6000	2000	6000	4600	400	20-600	200	480	15	620019003100
250T/3200	2000	3200	2500	400	20-800	200	540	18.5	340019502800
250T/4000	2500	4000	3100	400	20-800	250	540	18.5	420019502800
250T/5000	2500	5000	4000	400	20-800	250	540	18.5	520020003000
250T/6000	2500	6000	4600	400	20-800	250	540	18.5	620020003150

Torsion series 300T – 600T

Model	KN	Worktable L	Poles	Throat	Back Gauge	Stroke	Max Open	kW	Dimension
300T/3200	3000	3200	2500	400	20-800	250	560	18.5	340020003200
300T/4000	3000	4000	3100	400	20-800	250	560	18.5	420020003200
300T/5000	3000	5000	4000	400	20-800	250	560	22	520022003300
300T/6000	3000	6000	4500	400	20-800	250	560	22	620023003400
400T/4000	4000	4000	3100	400	20-800	300	600	30	420025003400
400T/5000	5000	5000	4000	400	20-800	300	600	30	520025003500
400T/6000	6000	6000	5000	400	20-800	300	600	30	620025003600
500T/4000	4000	4000	3100	400	20-800	320	630	37	420027003700
500T/5000	5000	5000	4000	400	20-800	320	630	37	520027003800
500T/6000	6000	6000	4500	400	20-800	320	630	37	620027004000
600T/4000	4000	4000	3100	400	20-800	320	630	45	420029004300
600T/5000	5000	5000	4000	400	20-800	320	630	45	520030004700
600T/6000	6000	6000	4500	400	20-800	320	630	45	620030005000
