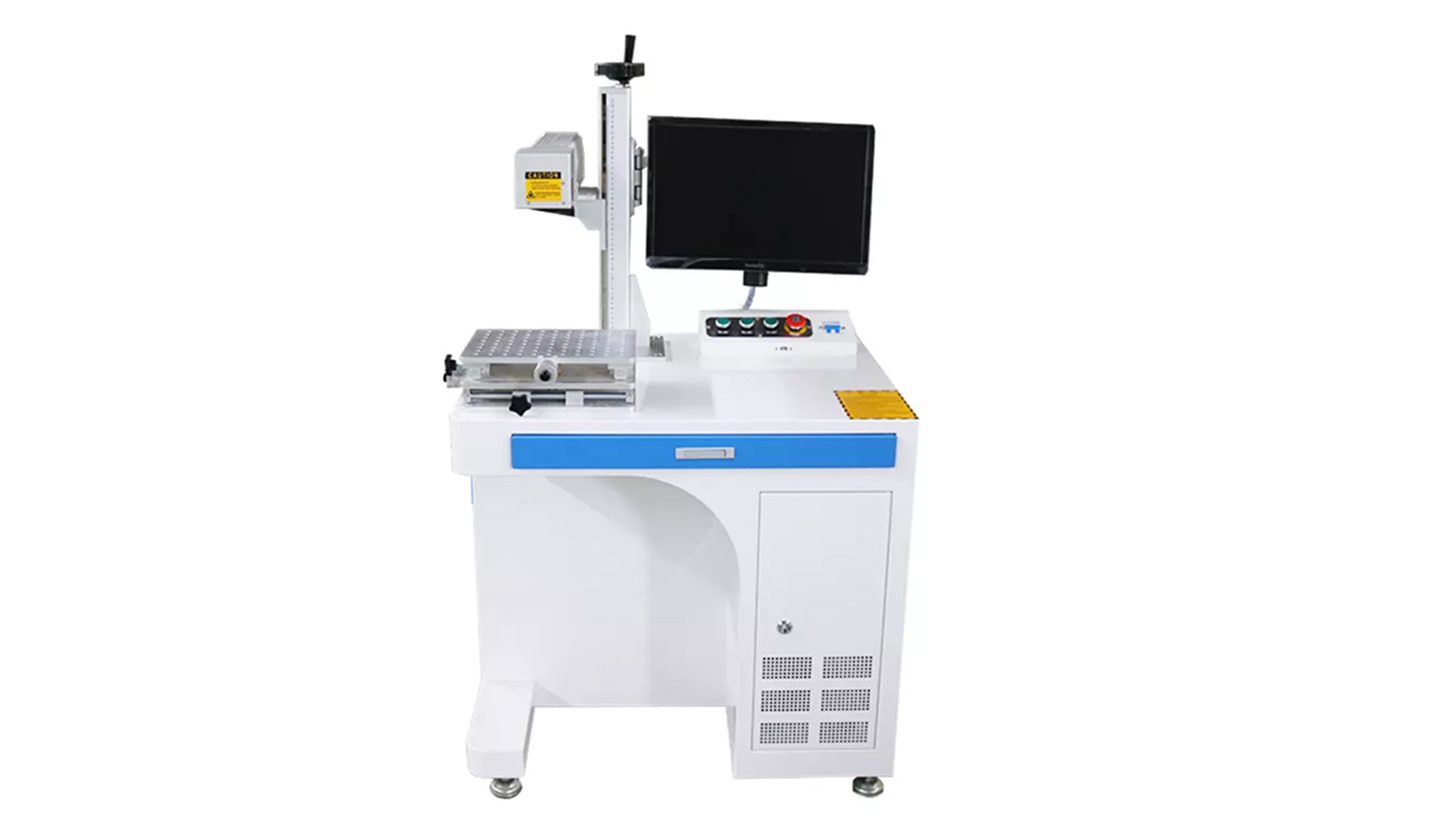

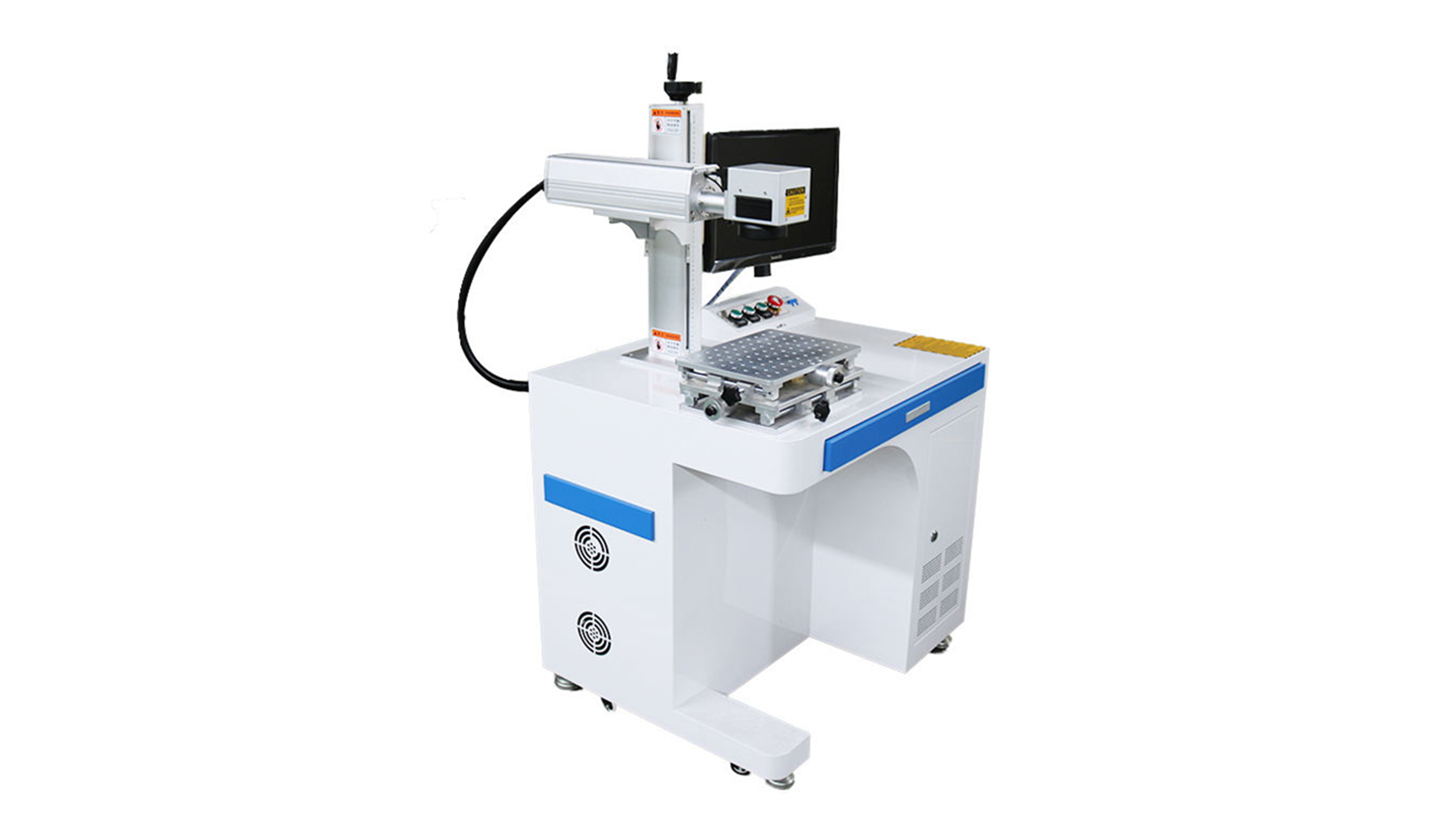

Cabinet-type laser marking machine

Product Parameters

1. Permanent & Tamper-Proof Marking

Laser marking creates indelible marks by altering the material's surface at a microscopic level. The results are permanent, non-fading, and resistant to wear, heat, and chemicals—ideal for anti-counterfeiting, serial numbers, barcodes, and traceability in industries like automotive, aerospace, and medical devices.

2. Exceptional Precision & Aesthetic Quality

With a laser beam as fine as 20 microns, the machine can engrave highly complex patterns, micro-sized QR codes, serialized texts, and logos with razor-sharp clarity. The mark is clean, smooth, and aesthetically superior—no post-processing required.

3. Ultra-Low Operating Cost & Zero Consumables

Unlike inkjet or screen printing, laser marking requires no inks, solvents, or replacement parts. The only cost is electricity. This results in extremely low long-term operating expenses and a rapid return on investment (ROI), especially for high-volume production.

4. High-Speed Automation & Integration

With marking speeds of up to 7,000–12,000 mm/s, the system supports "flying marking" on moving parts, making it easy to integrate into automated production lines. It significantly boosts throughput without compromising quality.

5. Eco-Friendly & Sustainable Operation

Laser marking is a green technology. It produces no chemical waste, no exhaust (especially when paired with a fume purifier), and minimal noise. It complies with modern environmental and ESG standards, supporting clean and sustainable manufacturing.


Product Details
Laser Marking Machine Guide 2026 | Fiber, UV & CO2 for Metal, Plastic, Wood

Industrial Laser Marking Machines: Fiber, UV and CO2 Series

Why Choose Laser Marking?

Permanent & Anti‑Counterfeit

Indelible marks by altering surface properties. Non‑fading, corrosion‑resistant. Ideal for traceability and brand protection.

Micron‑Level Precision

Beam as fine as 20µm for intricate patterns, micro QR codes, and ultra‑fine text on even the smallest components.

Zero Consumables Cost

No inks, solvents, or screens – only electricity. Typical ROI <12 months for high‑volume production.

Ultra‑Fast: up to 12,000 mm/s

Supports flying marking on conveyor lines. Seamless integration with existing automation.

Green Manufacturing

No chemical waste, no exhaust (with fume purifier), silent operation. Meets ESG and environmental standards.

Technical Specifications by Laser Type
Fiber Laser
20W                    30W                    50W                    100W

Best for: Metals (steel, aluminum, titanium), alloys, some plastics. 20-30W for anodized marking, 50W+ for deep engraving.

UV Laser
3W                    5W                    10W

Best for: Plastics, glass, silicone, medical devices. "Cold marking" – minimal heat affect zone.

CO₂ Laser
30W                    60W                    100W

Best for: Wood, acrylic, leather, paper, cardboard, organics. Higher power = faster cutting/engraving.

Laser Wavelength & Material Compatibility

1064 nm
Fiber
Metals, some plastics
355 nm
UV
Glass, plastics, silicone
10.6 μm
CO₂
Wood, leather, organics

Standard Marking Ranges (Field Lens)

110×110 mm                175×175 mm                300×300 mm

Custom ranges available upon request. Larger field = larger marking area but coarser spot.

Industry Applications & Model Selection
Industry SectorMaterialsRecommended Laser
Metal Molds / Hardware (automotive, aerospace)Stainless Steel, Aluminum, Steel, TitaniumFiber 20W-100W
Medical / Cosmetic PackagingPlastic (PP, PE, ABS), Glass, SiliconeUV 3W-10W
Woodworking / Leather / CraftsWood, Paper, Acrylic, Leather, FabricCO₂ 30W-100W
Electronics / SemiconductorCeramics, IC chips, PCBsGreen / UV

Looking for the perfect laser marker? Our fiber lasers (1064nm) are ideal for permanent marking on stainless steel, aluminum, and other metals. UV lasers (355nm) provide cold marking for heat-sensitive plastics, glass, and medical devices. CO₂ lasers (10.6μm) excel on wood, leather, and acrylic. All systems support flying marking up to 12,000 mm/s and are CE certified.

20+ years R&D             Free material test             CE, FDA, ISO certified             Global support
